How to install Treaded Inserts

Jan 03, 2020

AVF Inserts

Here are a few considerations to keep in mind when selecting the best insert type, and insertion process, for the application:

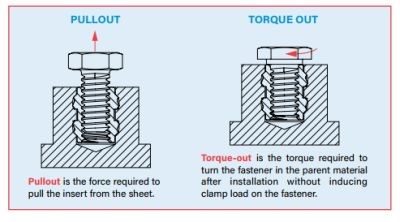

Strength requirements – The key strength factors are resistance to the insert pulling out of the part (pullout force) and resistance to the insert twisting in the part when the mating fastener is torqued (torque-out force). The longer the insert, the greater the pull-out resistance; the greater the diameter of the insert, the more torque capacity. The knurl pattern is also critical; more on that below.



Materials – Both the plastic material and the insert material matter, depending on the application. Two insertion processes—ultrasonic and heat-staking—involve re-melting previously molded plastic, so they only work with thermoplastics. For thermosets, the options are molding-in the insert, or cold pressing the insert in later, where elasticity of the resin material will become critical.



The most common material for the threaded inserts themselves is brass. However, with increasing sustainability requirements, lead-free alternatives such as stainless steel or aluminum are growing more popular. Stainless steel offers better strength and corrosion resistance, and aluminum inserts are about 70% lighter than brass.



Cost – Because threaded inserts can be molded into the part at the outset, or pressed into the part later, consider the total cost of the operation. That includes molding time and cost, component handling, and assembly. To better understand the trade-offs, here’s a quick look at the four primary insertion processes:



ARCHIVES

March 2015

Februari 2015

Januari 2015

Desember 2014

November 2014

TAGS

architecture

civil

engineering

construction

mechanical

eletrical

industrial

communication

electronics

tips

management

1. Heat Staking Threaded Inserts



Great for:

  • Thermoplastics
  • High overall performance and low installation cost



Heat-staking and ultrasonic insertion starts with a pre-formed hole (size specified by insert manufacturer), slightly smaller than the insert OD, that can either be formed in the molding process or drilled after. The insert’s outside walls can be straight or tapered. Both straight and tapered inserts offer good alignment of the fastener (as long as the hole is properly formed), with the self-aligning tapered inserts being easier and quicker to press in.



With heat staking, the insert is heated with a thermal press to a point where the insert then melts a small portion of the hole periphery as it is being pushed into the part. The softened resin flows into the knurl pattern and then hardens to form a firm bond with the insert. Because the process is easy to control, relatively low cost and lends itself well to automation (multiple inserts can be pressed in at once), heat staking is the more commonly applied process for thermoplastic materials.





2. Ultrasonic Assisted Threaded Inserts



Great for:

  • Thermoplastics
  • High overall performance



Similarly, ultrasonics can be applied to melt a border zone in the hole. Instead of heat, the ultrasonic process creates a vibration frequency that melts the plastic. It is comparable in speed with heat staking but requires precise control, and can create a larger process-affected zone that can result in chipping of the material. The ultrasonic process can also be loud and more difficult to automate, which is why it is less likely to be used, particularly by shops not already doing ultrasonic welding.





3. Molded-In Threaded Inserts



Great for:

  • Thermosets & thermoplastics
  • Best pull-out and torque performance



With molded-in inserts, pins are machined or inserted into the mold core. The inserts are then placed over the pins for each cycle of the molding process. With this process, the resin completely encapsulates the inserts, which generally results in the best overall bond and eliminates the need for any subsequent insertion process. However, this process requires a more complicated core with close tolerances between the pins and inserts. It also takes time to place the inserts between each cycle of an injection molding machine.



Molded-in inserts can be “thru-threaded,” meaning the insert is open at both ends and thus requires solid contact with both the core and cavity surfaces to keep resin from flowing inside of the insert. Or they can be “blind-threaded,” meaning the insert is closed on one end so contact with the cavity surface is not required—with thicker walls, for example, or cases where the fastener should not be seen on the cavity side of the part.





4. Cold Pressed-In Threaded Inserts



Great for:

  • Thermosets
  • Easy installation at lowest cost
  • Requires only a simple press



Although they may not perform as well as the aforementioned types, cold pressed-in inserts are a highly economical alternative because they are easy to install and typically do not require special auxiliary equipment.



Sometimes called “expansion inserts,” one type of pressed-in inserts features slots machined into the sides that enable them to flex as they are inserted, and can be easily pressed in with just finger pressure. When a mating screw is installed, the sides of these inserts are forced outward, creating a “biting” contact with the hole’s ID wall. They essentially work like the sheathed lag bolts you’d find at the hardware store.



Higher performance pressed-in inserts feature solid bodies, and require a press for insertion. While not to the strength standards of the processes that melt plastic around the insert, these inserts can nonetheless provide a sturdy alternative with an extremely cost-effective insertion process.
